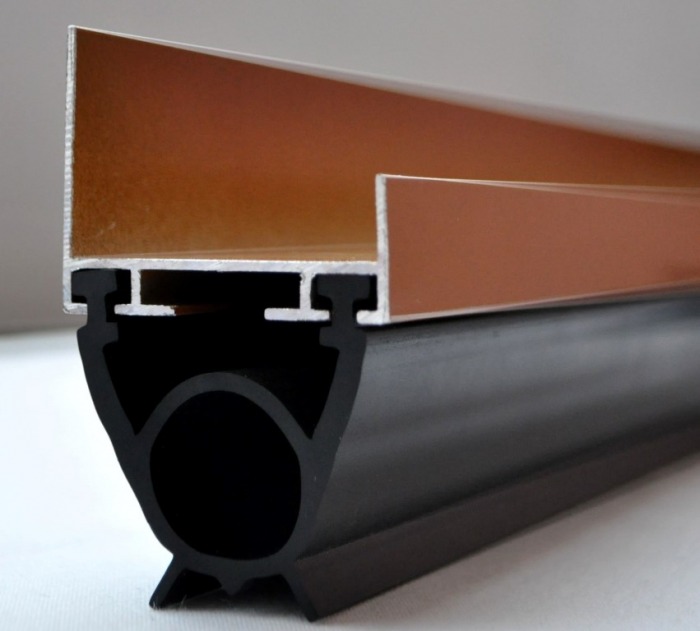

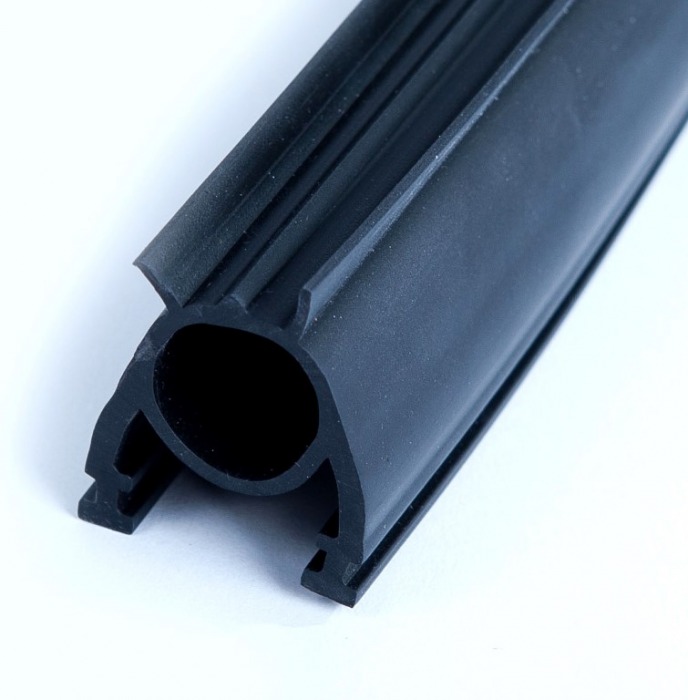

Segmented bottom "UB - 1"

Segmented bottom "UB - 1"

Manufacturer: Firma Skowroński

Packaging: cut at any length

Weight: 0.48 kg/lm

Available colors: black only

Sales: STORE or order by FORM

Application: replacement of worn garage door seals

Properties:  manufactured of plasticized PVC and rubber of app. 65°ShA hardness.

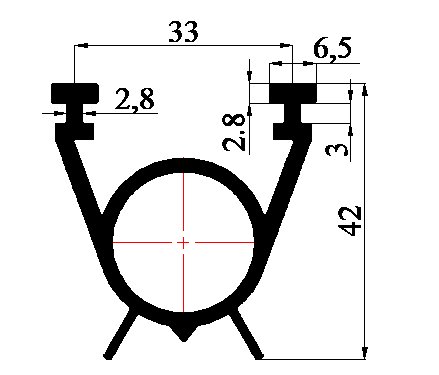

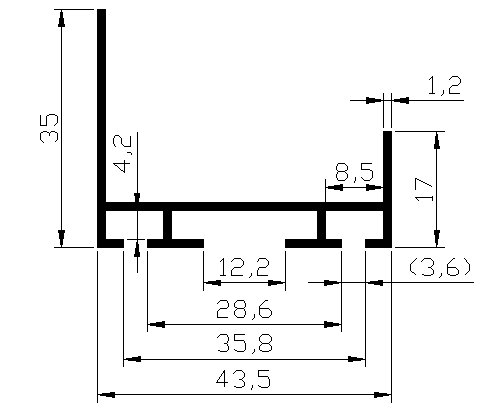

Dimensions: provided in the photo tab. Check the dimensions to match appropriate seals to your garage doors.

NOTE: garage doors profiles are not available in sales. We sell only garage door seals.



Instruction for garage door seal replacement

  • The instruction applies to most garage doors available on the market. There may be certain garage doors, to which this instruction does not apply.
  • To replace the bottom seal, unscrew guide rollers at both sides of the bottom segment. Then lift the segment and remove the old seal.
  • Place the new seal gentry into the aluminum profile. To facilitate seal assembly, apply some dishwashing liquid on this part of seal, which will be placed in the profile. The segment with assembled seal should be pushed down to the guide. Reassemble the guide rollers.
  • Proceed with upper seal in the same way.

NOTE:

  • Do not disassemble the aluminum strip fixed to the segment, which is in most cases assembled using the blind rivets.
